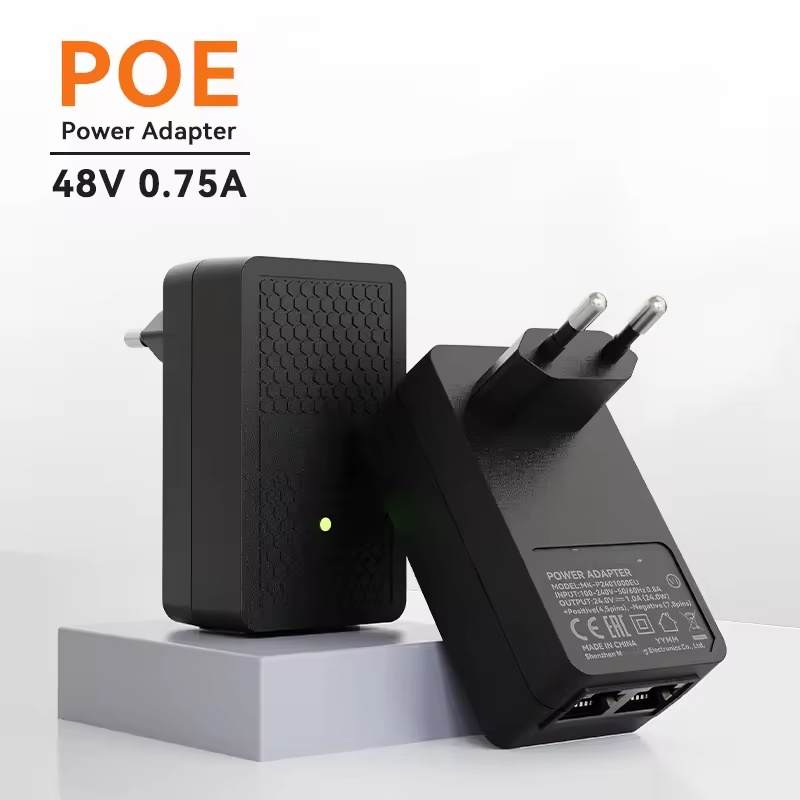

1.Remotely power PoE Device Thru CAT.5,6,7 Cable up to 328.1 feet(100 meters)
2.IEEE802.3af Power over Ethernet with 48V Power Supply, wall plug type.
3.Input 100-240VDC, Output: 48V 24W passive PoE Output

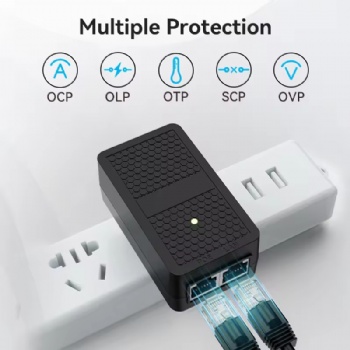

4.Short Circuit, Over Current and Over Voltage Protection

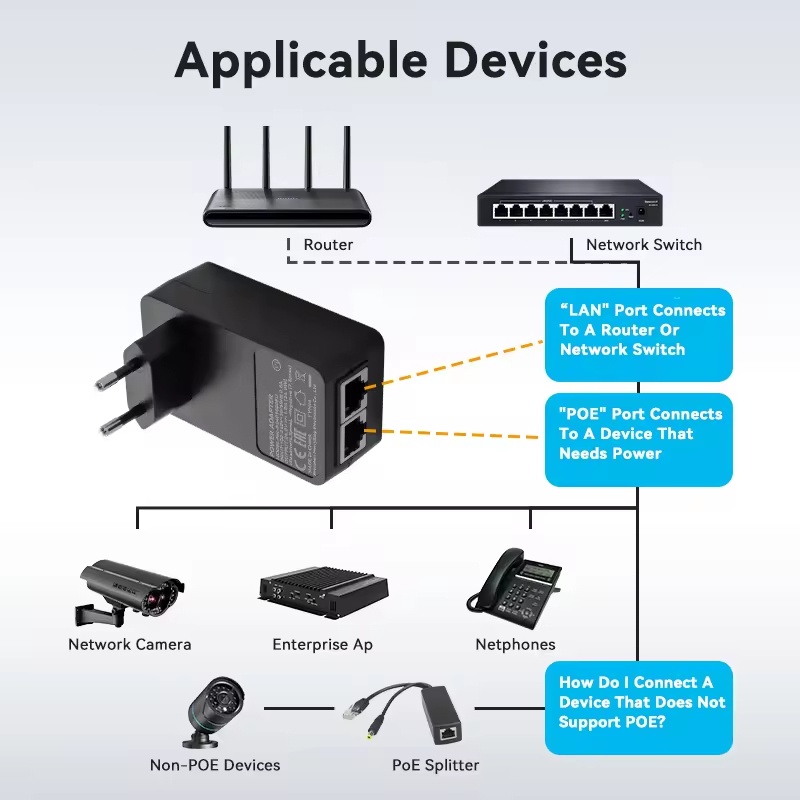

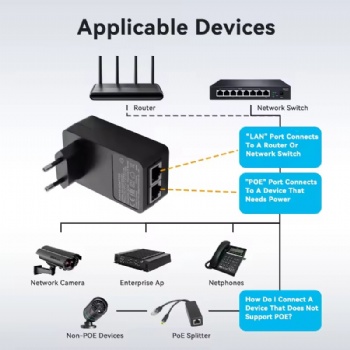

5.Compatible with most 10/100Mbps IP camera, IP phone, Wireless IP point and other PoE devices.
Specification

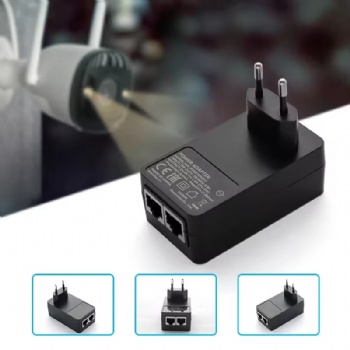

1)2 RJ45 Ethernet ports
2)48V 0.5A power output,
3)Power feed: V+ 4,5; V- 7,8; Date: 1,2, 3,6
4)Data rate: 10\100Mbps
5)Deliver power up to about 328.1 feet(100 meters)
6)Support 100-240VAC voltage input
Specification details

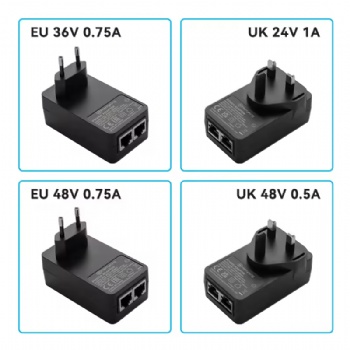

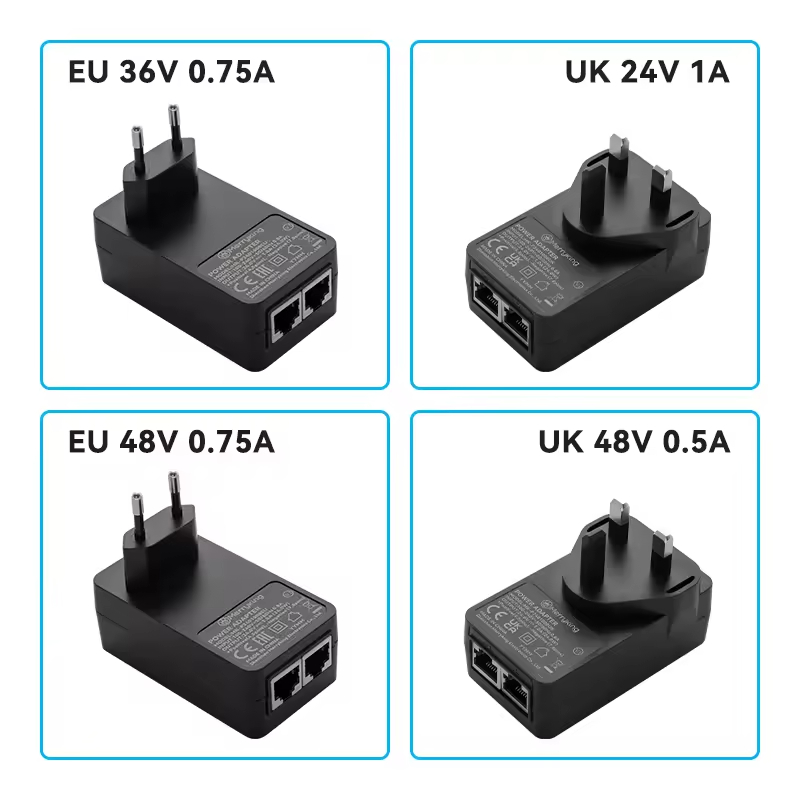

| Model No. | POE Wall-mounted Power adapter |
| input | 100-240VAC, 50/60Hz, 0.8A Max |
| Housing | Plastic PC 94V0 |
| Output Voltage/Current | 24V-48V1，0.1-1A, POE & LAN |
| Full Load Efficiency | VI Level |
| AC plug | US EU AU UK EK CN AR |
| DC Cable | 1M/1.5M/2M/Customized |
| Storage temperature | -40 to 85℃ |
| Color | Black/White/Customized |
| Product Dimensions (mm) | 82.5x46.9x30.7 |

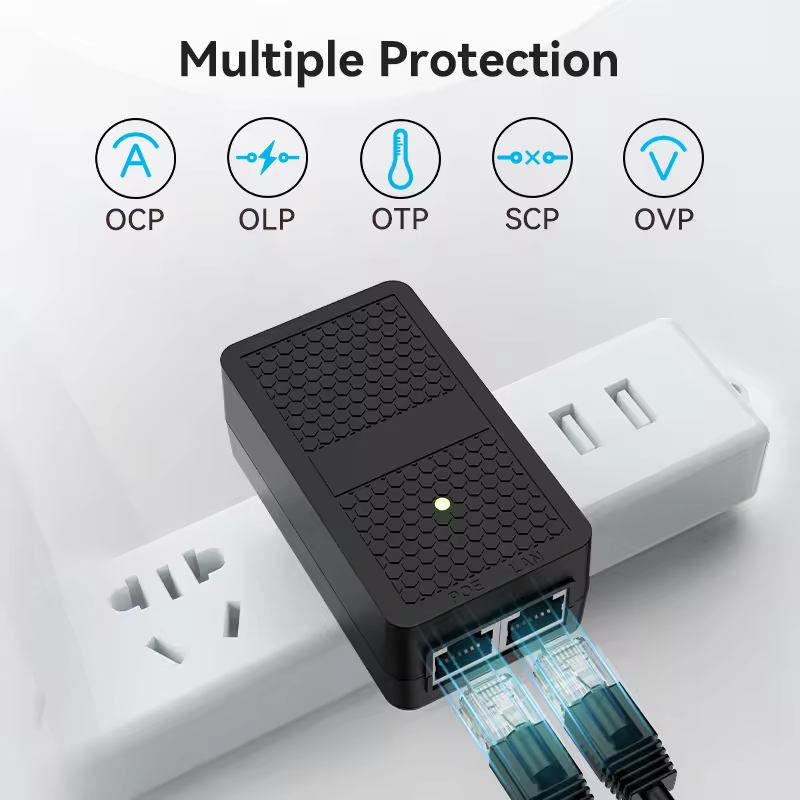

| Protection function | OCP OTP OVP SCP |

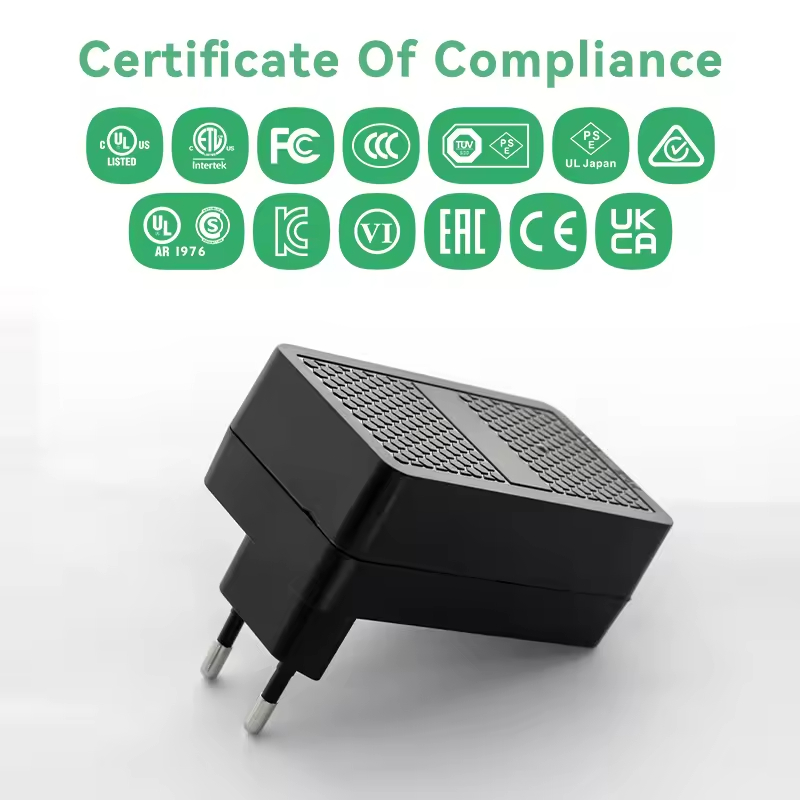

| Certification | ETL, CE,PSE,RCM,SAA, CQC etc |
| Warranty | 2 years |
