Specification

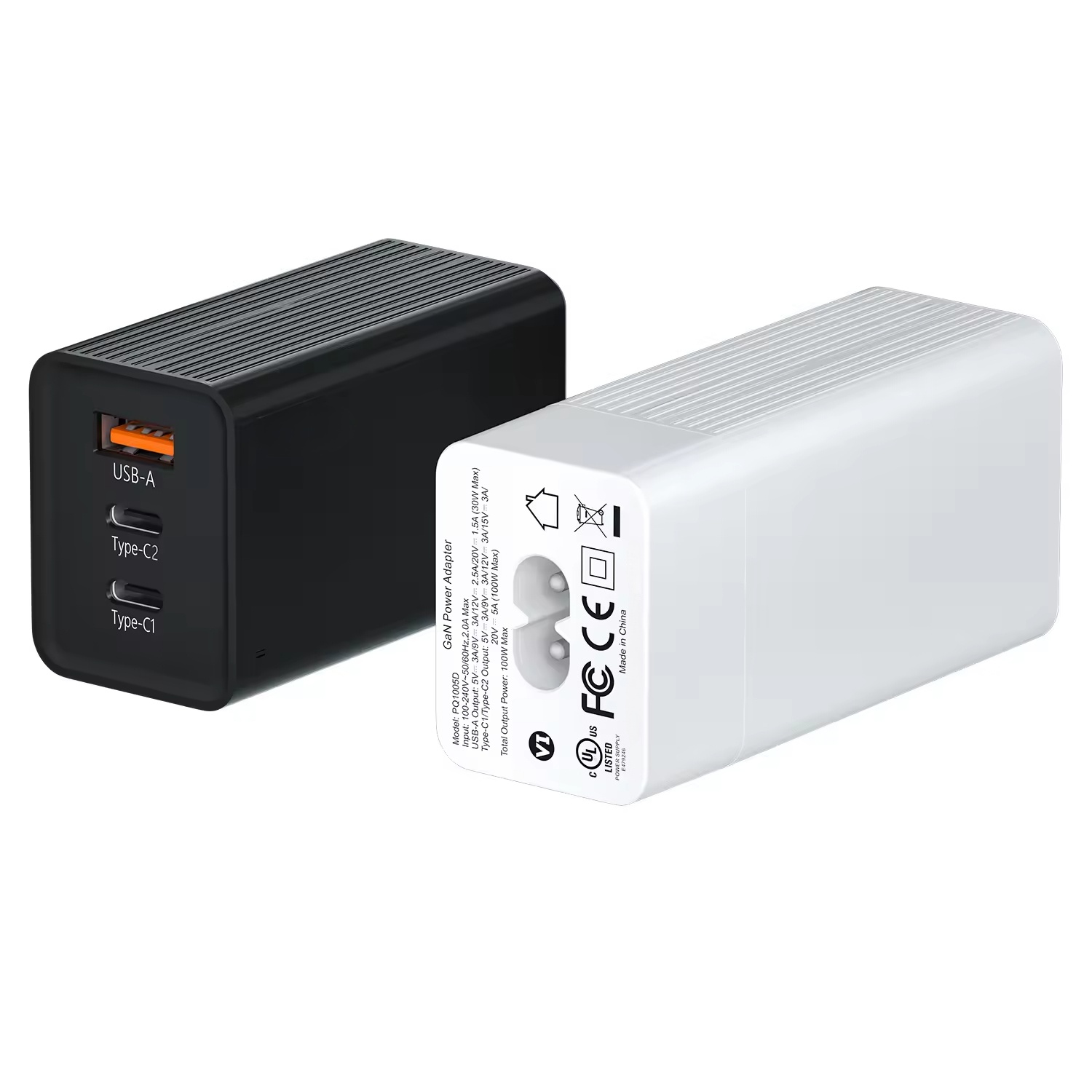

Model: TYPE-C100F

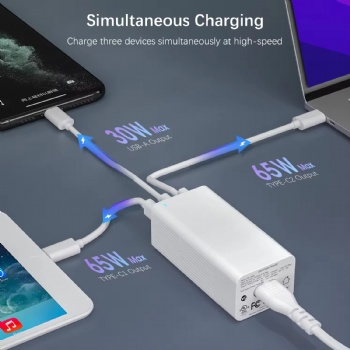

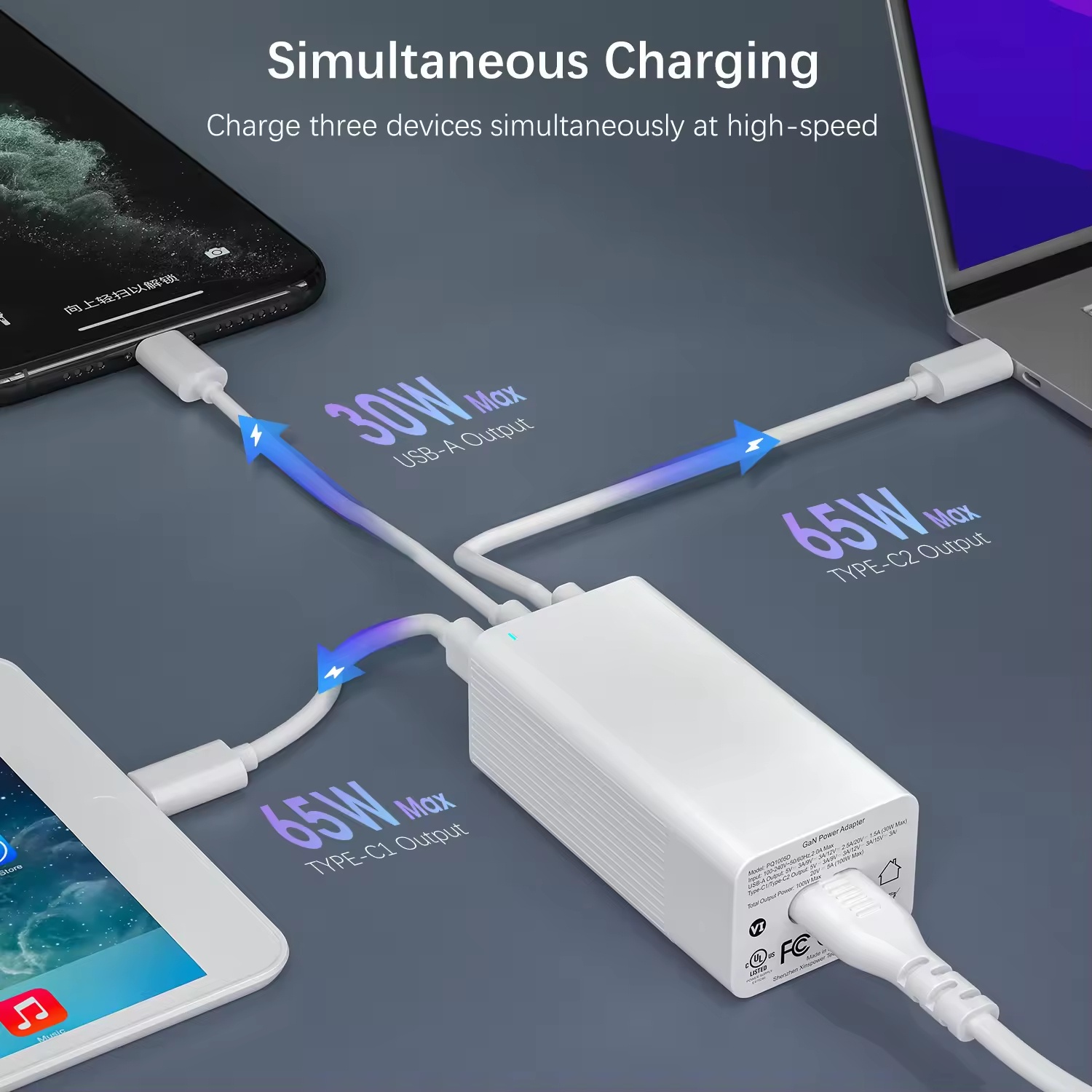

1.Charging with 2 Type C and 1 USB Ports
2.Compatible with PPS Technology
3.Output Voltage: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A, 3.3-20V 5A (PPS)
4.Surge Protection, Excess Current Protection, Short circuit Protection
Specification Details
| Model No. | TYPE-C100F |
| input | 100-240VAC, 50/60Hz, 0.8A Max |
| Connector | Type C |
| Housing | Plastic PC 94V0 |
| Output Voltage/Current | 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A, 3.3-20V 5A (PPS) |
| Full Load Efficiency | VI Level |
| Function | QC4.0,QC3.0,PD3.0 |
| Operating temperature | -20 to 40℃ |
| Port | 1 x USB, 2 type-c |
| Usage | Laptop, Electric Tool, Power bank etc. |

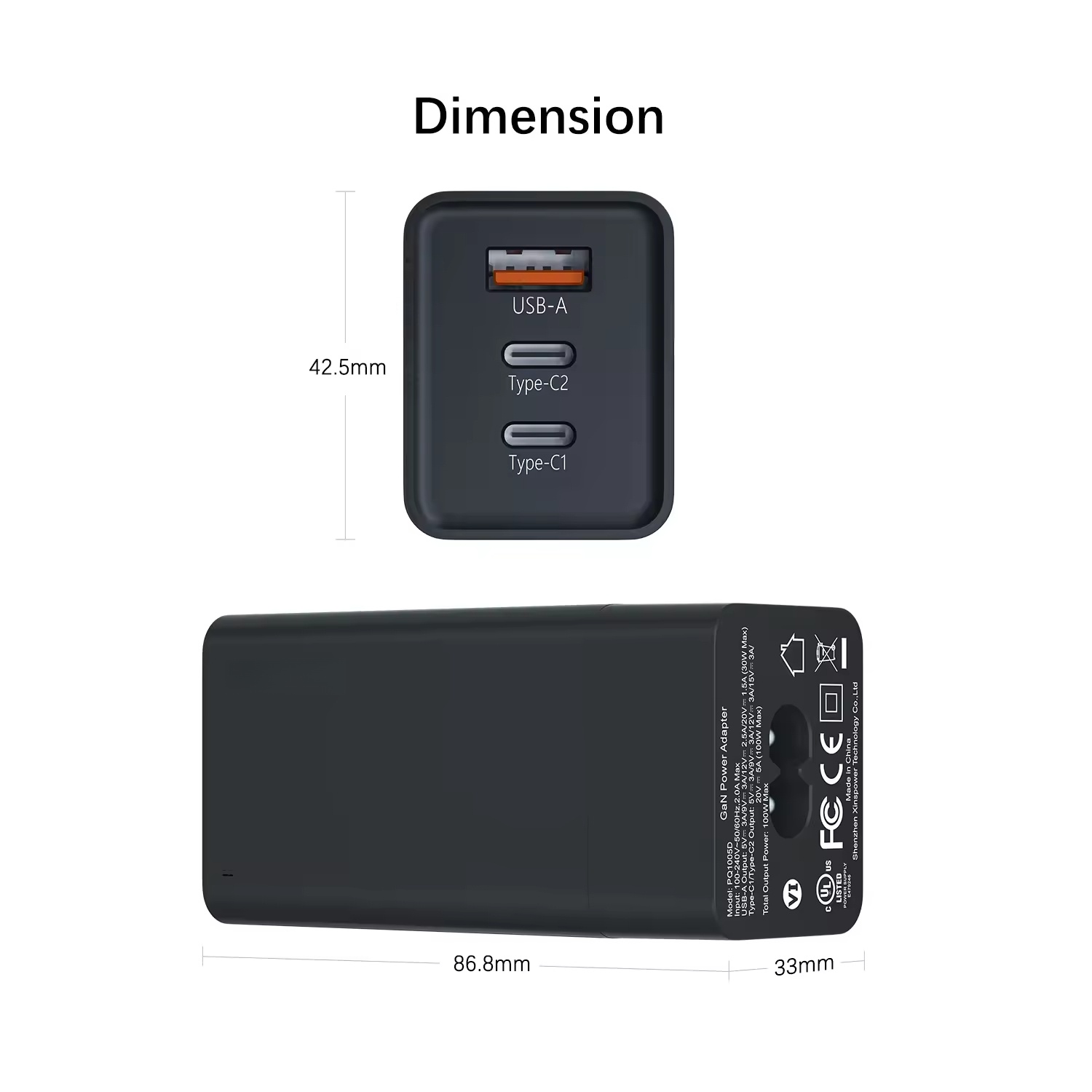

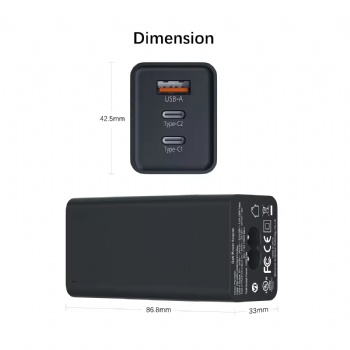

| Product Dimensions (mm) | 83.5x42.5x33mm |
| Protection function | OCP，OVP,Short Circuit Protection, Reverse Polarity Protection, Anti-revert current Protection, Anti-spark Protection etc |
| Certification | cUL, CE,PSE,RCM,SAA, CQC etc |
| Warranty | 2 years |
A professional and trusted one-stop OEM and ODM Power solution provider for all kinds of power supplies, Battery Charger, PD charger etc.
