Specification
· Model:CGSW150-xxx-yyyyII
1.Wide Input Voltage Range 100-240Vac
2.OCP OVP Voltage Range 100-240V

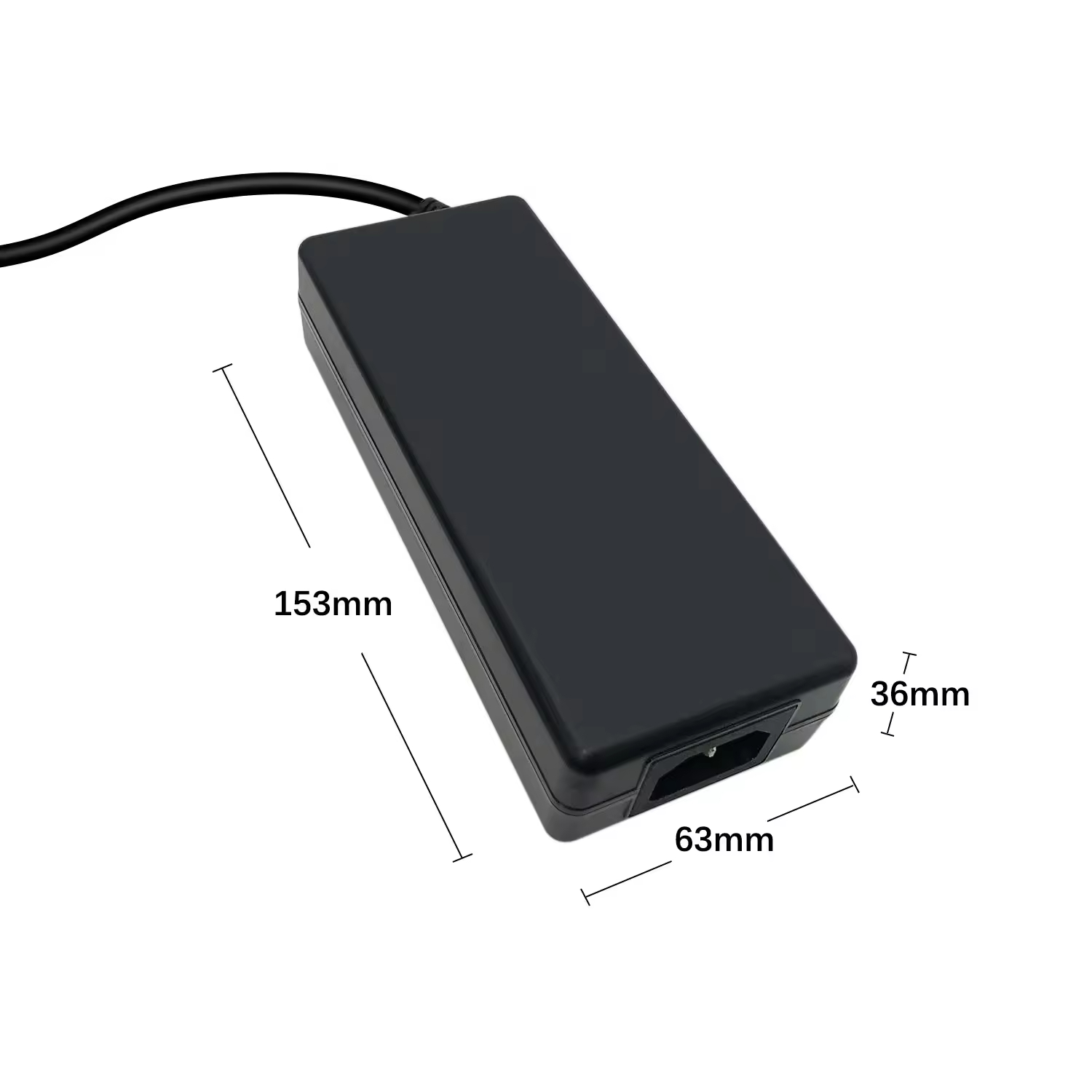

3.Dimension: 155x63x36mm
4.EN62368 EN61558 Standard
5.cUL FCC CE GS PSE KC CCC Global Certificates
Specification details:
| input | 100-240VAC, 50/60Hz, 2.5A Max |
| PFC | PF》0.9 |
| Housing | Plastic PC 94V0 |
| Output Voltage/Current | 12V10A,15V8A,19V7A,24V6.25A,36V4.1A |
| Full Load Efficiency | VI Level |
| LED Indicators | LED1: Red---Power on |
| Operating temperature | -20 to 40℃ |
| Storage temperature | -40 to 85℃ |
| Waterproof Rating | IP20 |
| Product Dimensions (mm) | 155x63x36 |
| Protection function | OCP,OVP,Short Circuit Protection, Reverse Polarity Protection, Anti-revert current Protection, Anti-spark Protection etc |
| Certification | ETL, CE,PSE,RCM,SAA, CQC etc |
| Warranty | 2 years |
