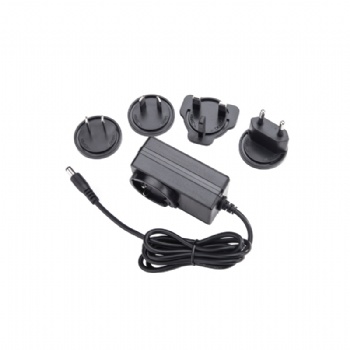

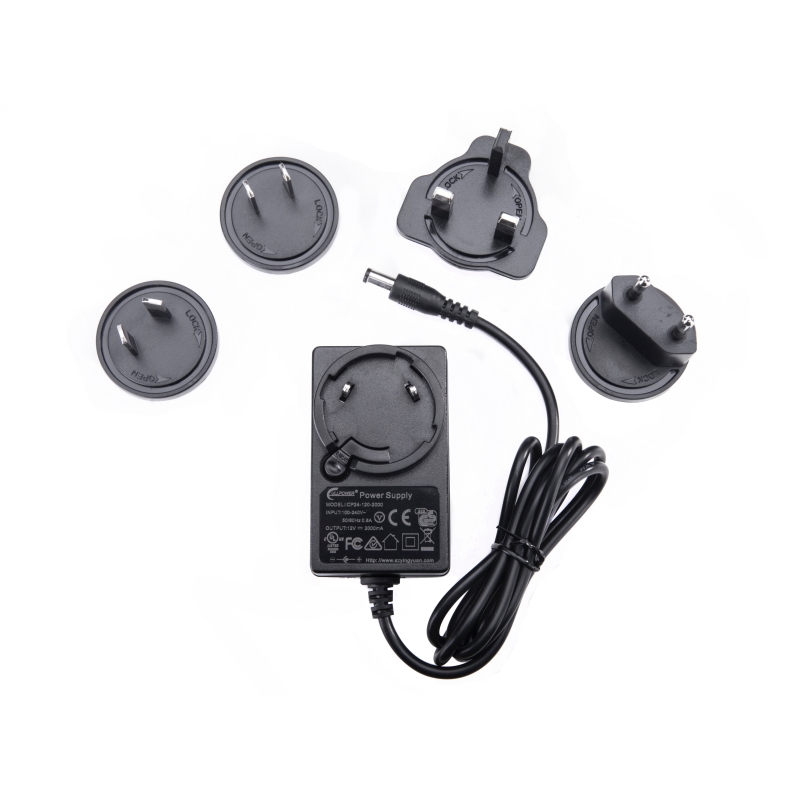

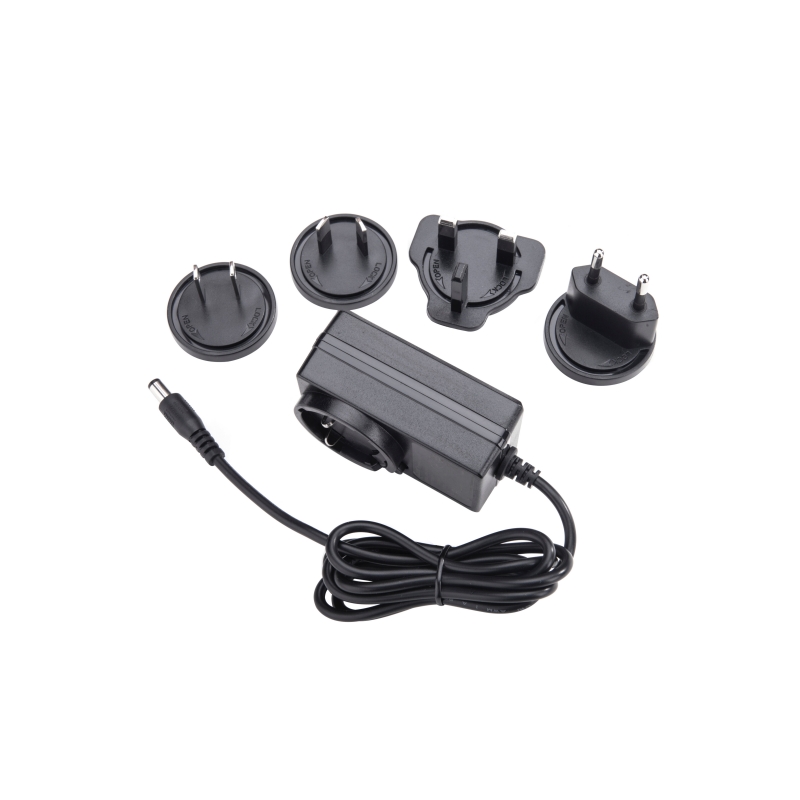

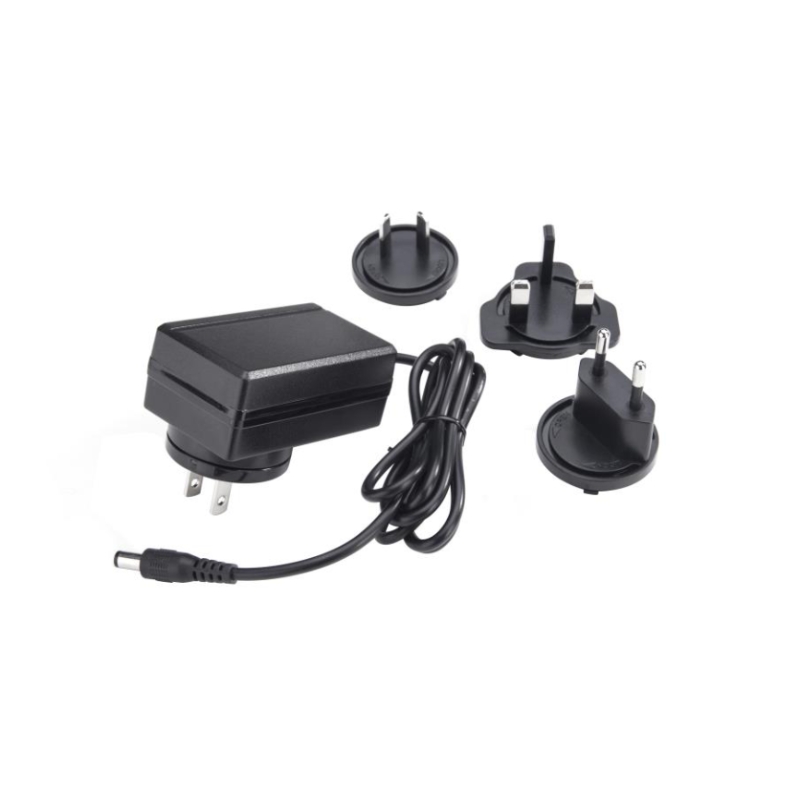

The ICP30 series 30W Interchangeable Prong Ac Dc Adapter come with cUL FCC CE GS PSE RCM global certifications and integrated safety features such as OCP, OVP, overload, and short-circuit protection.
The 30W Interchangeable Prong Power Adapter utilizes top-tier materials, strict manufacturing protocols, and superior electronic components for optimal stability, offering users a secure charging experience.
Ideal for small household appliances, IoT devices, electronic pianos, air purifiers, POS machine, LED lamp, and more.
Specification
Model:ICP30A-xxx-yyyy
1.Wide input Voltage Range100-240VAc
2.OCP OVP and Shiort Circuit Protection
3.Dimension: 71.2x43x29mm
4.EN62368 EN61558 EN60335 Standard
5.cUL, FCC,CE,GS,PSE,KC,CCC etc Global Certificates
Specification Details:
| Full Load Efficiency | DOE VI,ERP VI etc | |||
| Burn-in Test | 80% to 100% load, 40 C°± 5℃ for 4 hours | |||
| Hi-Pot Test | Primary To Secondary: 3000VAC 10mA 1 minute or 4000VDC 10mA 3 Sec. | |||
| Operating temperature | 0 to 40℃ | |||
| Storage temperature | -20 to 60℃ | |||
| RoHS & Reach | Yes | |||
| Length of DC cord | Optional (1.2m 1.5m 1.83m etc) | |||
| DC plug | Optional (5.5x2.5mm 5.5x2.5mm 3.5x1.35mm etc) | |||
| Product Dimensions (mm) | 71.2*43*29 | |||
| Ripple & Noise | 120Vp-p Max | |||
| Package | White box or Plastic Bag with outer carton | |||
| No load Power Consumption | < 0.075W | |||
| Protection function | Short-circuit/OVP/OCP etc | |||
| Safety Certificate | EN62368:UL/CB/CE/GS/EMC/LVD/RCM/KC/FCC/PSE/CCC | |||
| EN61558:CE/GS/CB/FCC/LVD/RCM UL 1310 | ||||
| Warranty | 3 years | |||
Typical Model
| I/P Voltage | Typical Model | Output Voltage | Output Current | Ripple& Nosie | Effiviency Level |
| 100-240V/ 50-60Hz | ICP30A-090-3000 | 9V | 3000mA | 100mV | VI |
| ICP30A-120-2000 | 12V | 2000mA | 100mV | VI | |
| ICP30A-120-2500 | 12V | 2500mA | 100mV | VI | |
| ICP30A-240-1000 | 24V | 1000mA | 100mV | VI | |
| ICP30A-240-1250 | 24V | 1250mA | 100mV | VI |

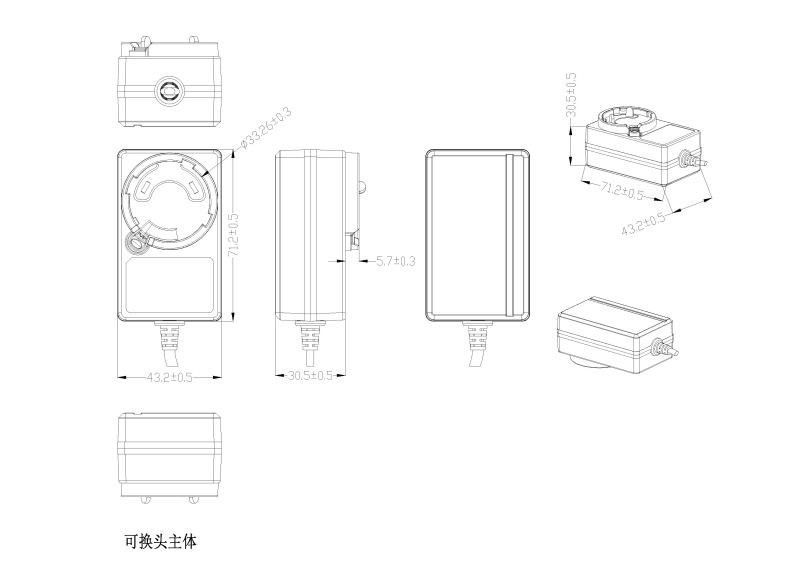

Appearance Dimension
